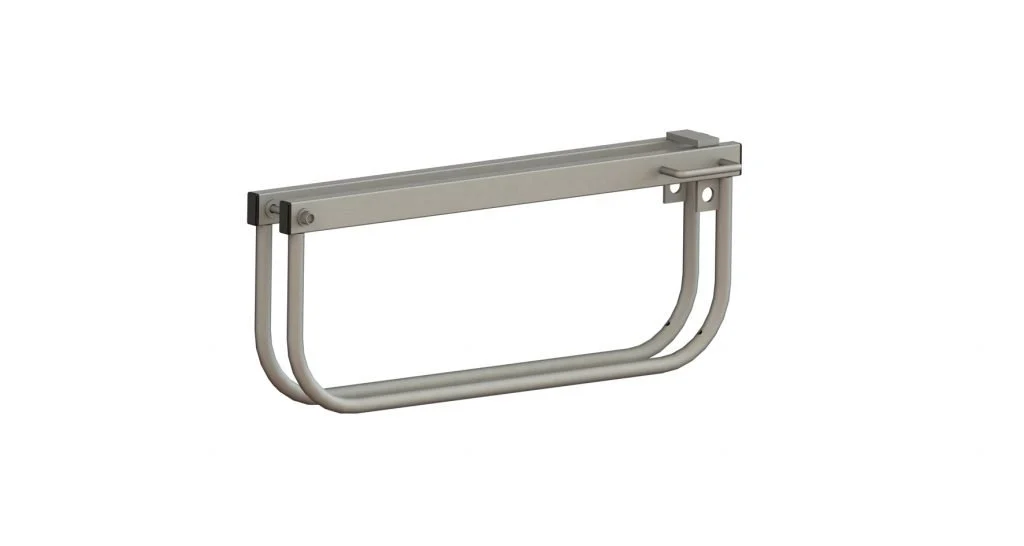

Heavy Duty Drop-Over Frame | Heavy Duty Drop‑Over Frame

Description

The Heavy Duty Drop-Over Frame is a robust, galvanised support solution designed to secure gates or infill panels to existing posts or uprights. Engineered for strength and simplicity, this drop-over frame provides a quick and reliable fixing method without the need for welding or drilling.

Manufactured from thick-gauge, hot-dip galvanised steel,the drop over frame, offers long-term resistance to corrosion in demanding agricultural, equestrian, and construction environments. Its durable finish ensures dependable outdoor performance in all weather conditions.

The drop-over design allows the frame to slide securely over gate or panel tops, locking into place with heavy-duty clamps or bolts (included). This design enhances rigidity while maintaining flexibility for removal or repositioning if required.

Ideal for farm yards, livestock handling systems, temporary access points, or construction enclosures, the dop-over Frame provides a practical solution for both permanent and semi-permanent installations.

Whether upgrading existing infrastructure or installing new gate systems, this drop over over frame delivers strength, speed, and professional-grade performance.

Additional information

Weight	25 kg
Key Features	Heavy-guage galvanised steel — Built to withstand daily wear in harsh environments Drop-over design — Installs easily over posts or gate tops for quick deployment No-weld, no-drill installation — Secured using supplied clamps/bolts Secure and rigid — Engineered to resist bending or impact Portable & removable — Ideal for temporary setups or seasonal use Corrosion resistant — Long-lasting galvanised finish for outdoor durability
Product Specification	Material Hot-dip galvanised steel Thickness 4 mm (approx.) Finish Corrosion-resistant galvanised coating Installation clamp M10 bolts & heavy-duty tube clamp (included) Compatible post sizes 75×75 mm to 100×100 mm square or equivalent round posts Clear internal drop height 1200 mm (may be customised upon request) Overall width Variable – adjustable to fit different span sizes Weight Approx. 25 kg (for standard 1.2 m clear height)
